No. |
Name |
Function |
Material |
|

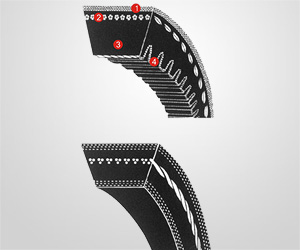

1 |
Top Fabric |
Protect the lining tensile
member |
Polyester Cotton Canvas
|
|
2 |
Core Cord |
Nuclear material to pass the
dynamic force |
Polyester |
|
3 |
Bottom Rubber |
Side compression resistant and
section |
CR,EPDM |
|
4 |
Bottom Fabric |
Absorb the impact and prevent
crack of the core rubber |
Elastic Fabric
|
| Feature |
- Large intensity,high
flexibility,good durability
- Special Bottom rubber
used,small elongation and long service life
- Excellent
heat-resistance,oil-proof,and wearing resistance
- High transmission efficiency
- Suitable for band pulley with
minor diameter
- Safe performance can be
guaranteed even during high-speed operation
|
|
�� |

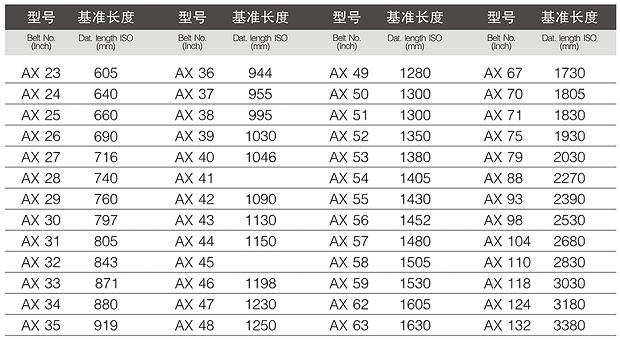

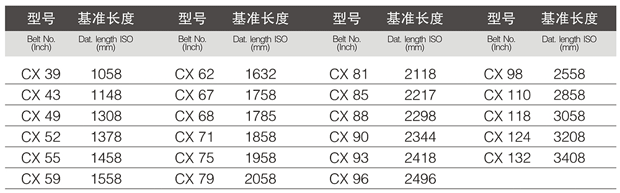

| Section Size of
lndustrial Raw Edge V Belts |
|
Type |
Top width
��mm�� |
Belt Thickness
��mm�� |
Angle���㣩 |
|
HM |
10.5 |
8.0 |
38 |
|
AX |
13 |
8.0 |
38 |
|
BX |
17 |
11 |
38 |
|
CX |
22 |
14 |
38 |
|
DX |
32 |
19 |
38 |
|
EX |
38 |
23 |
38 |

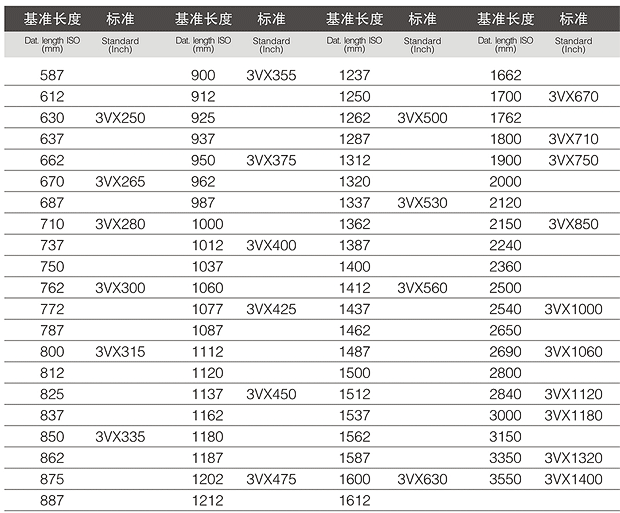

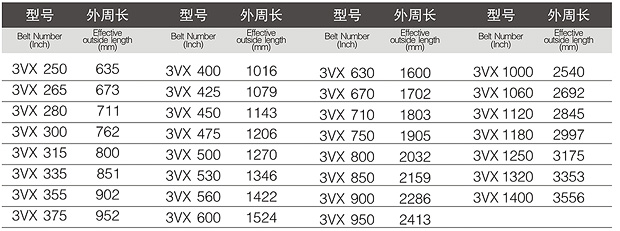

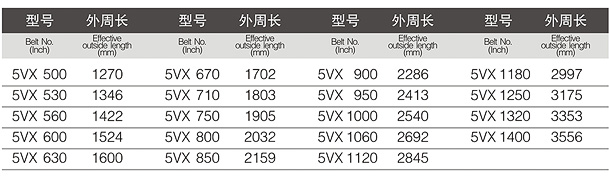

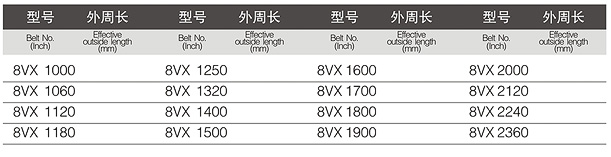

| Section Size of Raw
Edge Narrow Belts |
|
Type |
Top width
|
Belt Thickness
|
Angle |
|
XPZ |
9.7 |
8.0 |
40 |
|
XPA |
12.7 |
10 |
40 |
|
XPB |
16.3 |
13 |
40 |
|
XPC |
22 |
18 |
40 |
|
9NX |
9.5 |
8 |
40 |
|
15NX |
16 |
13.5 |
40 |
|
25NX |
25.4 |
23 |
40 |
| Section Size of Raw
Edge V Belts for Automobile |
|
Type |
Top width
|
Wrapped V belt
|
Raw edge V belt
|
REF |
REC |
Angle |
|
AV-10/9.5 |
10.0 |
8.0 |
7.5 |
7.5 |
8.0 |
40 |
|
AV-13/12.5 |
13.0 |
10.0 |
8.5 |
8.5 |
9.0 |
40 |
|
AV-15 |
15.0 |
9.0 |
- |
- |
- |
40 |
|
AV-17 |
16.5 |
10.5 |
9.5 |
9.5 |
11.0 |
40 |
|
AV-22 |
22.0 |
14.0 |
- |
- |
13.0 |
40 | |

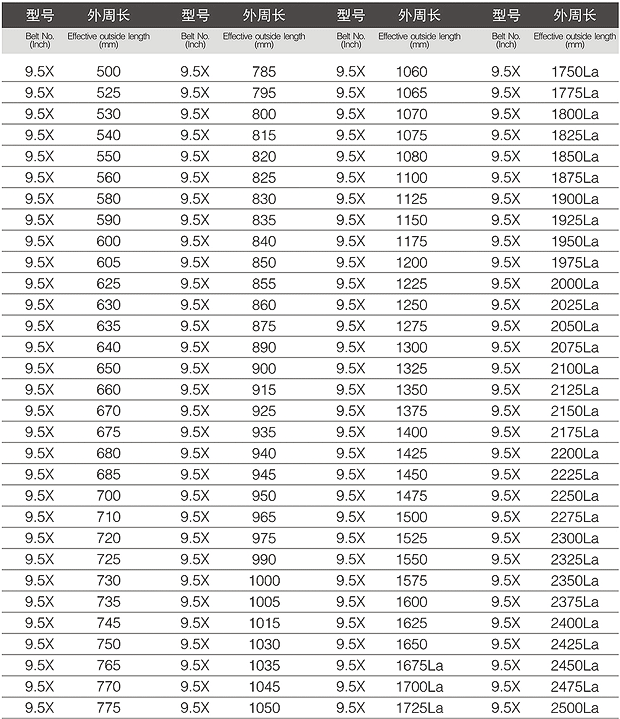

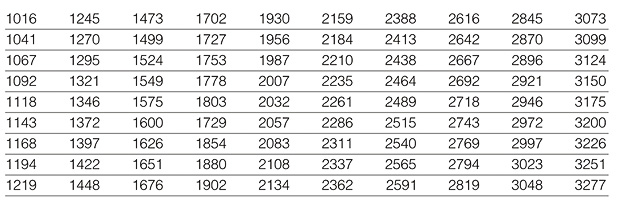

HM(X9.5)
AX(X13)

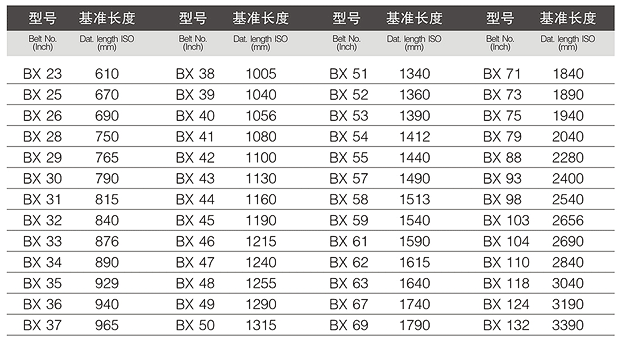

BX(X17)
 | CX(X22)

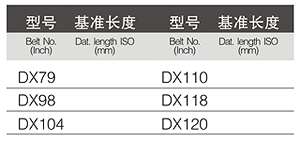

DX(X32)

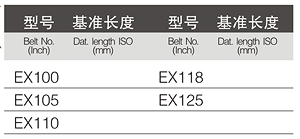

EX(X38)

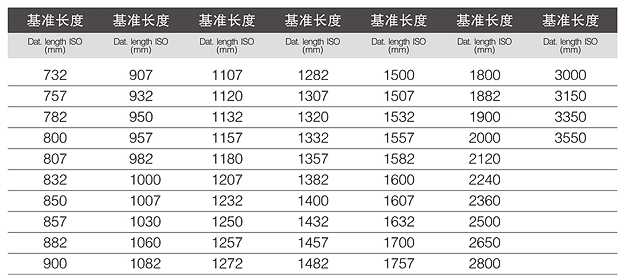

XPZ(3VX)
XPA

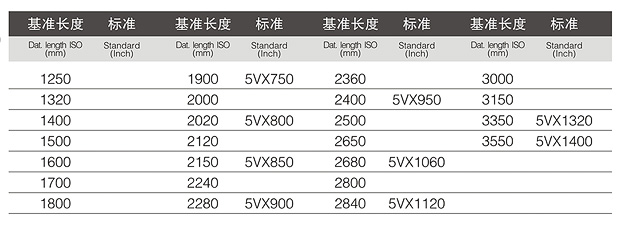

XPB(5VX)
XPC
3(9NX)
5VX(15NX)
8VX(25NX)

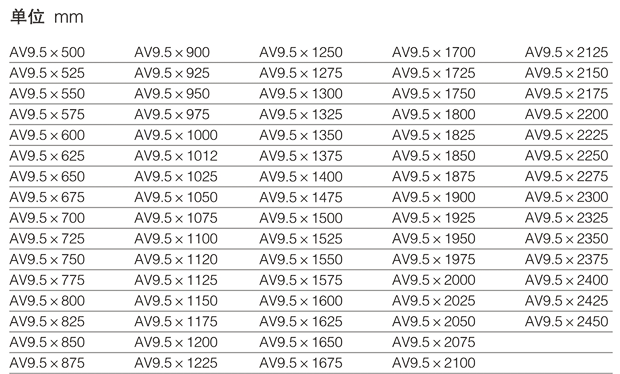

AV9.5

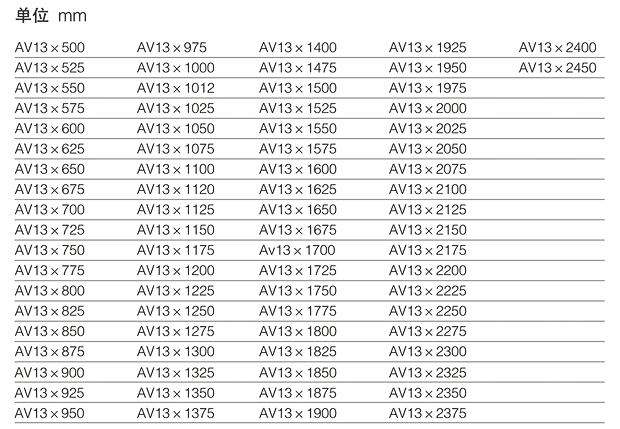

AV13

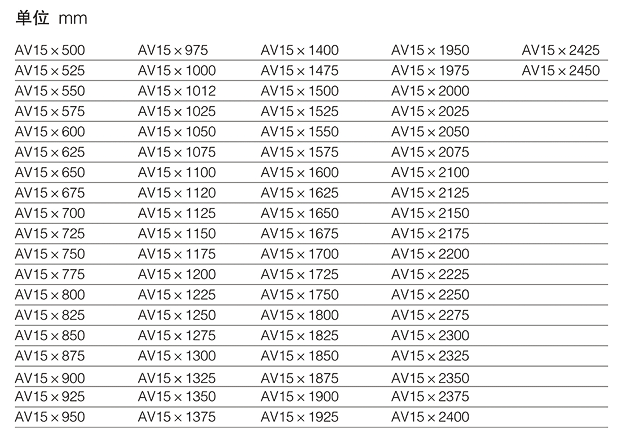

AV15

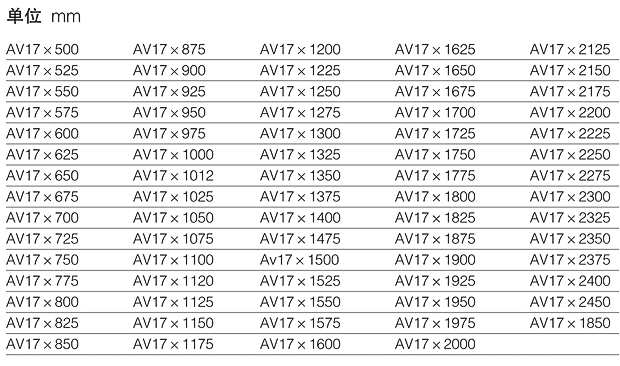

AV17

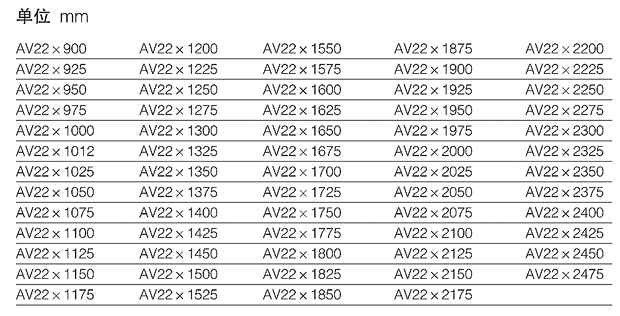

AV22
 | |
