Wrapped Belt

    Description:

Wrapped V-Belt
Our company takes the laed in successfuily deceloping new generation enhanced-type oil proof triangular beit.Ditterent from the technology triangular beit,it is manufactured using the technology of raw edge V belt. lts principat part is made of oil proof and best heat resistance.compound rubber,and the framework is made of special polyester stiff cord.

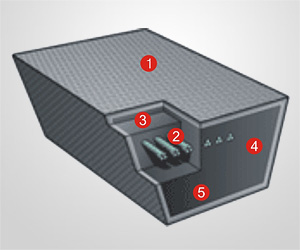

Structure
No.
Name
Function
Material
1
Outside Fabric
Protect the linling tensile member
Polyester Cotton Canvas
2
Tensile Member
Core material to pass the dynamic force
Polyester Wire
3
Top Rubber
Maintain the top shape of the adhesive tape
NR、CR、SBR
4
Buttom Rubber
Support and protect the adhesive force of the tensile member
NR、CR、SBR
5
Buttom Rubber
Maintain the bottom shape of the adhesive tape
NR、CR、SBR

Feature
  • The wrapper protects the inner layer,strong durability.
  • Special core rubber used,small elongation and long service life
  • Excellent heat-resistance,oil-proof,and wearing resistance
  • Prevent the generation of the static and keep safe use
  • Small friction coeffion coefficient and large transmission effect during operation
  • Less noise during operation

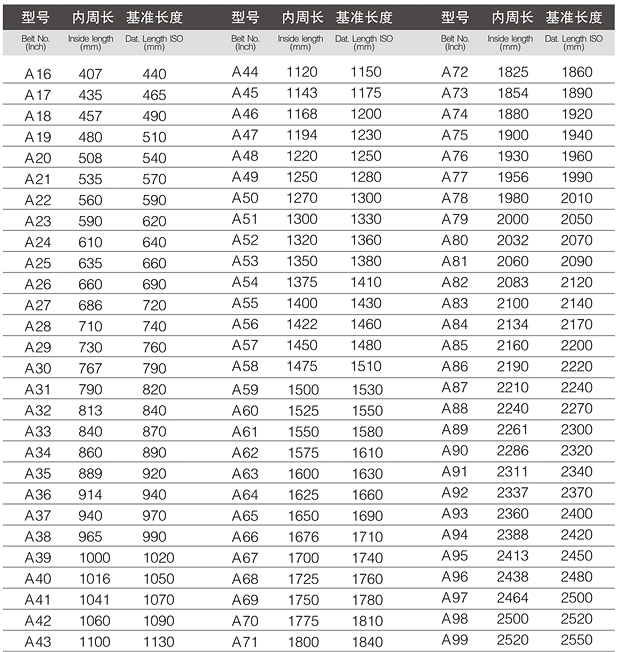

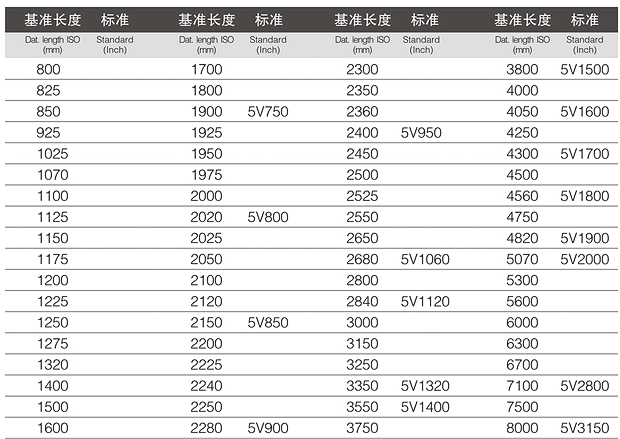

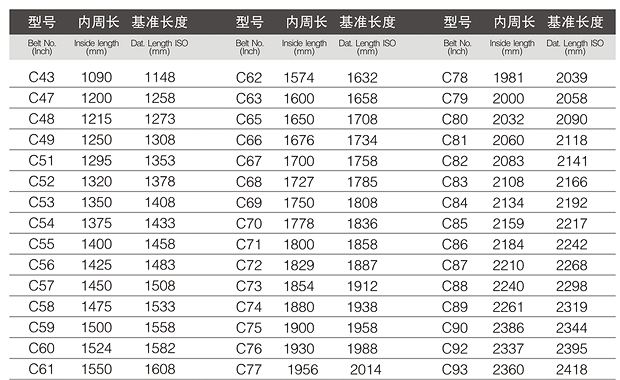

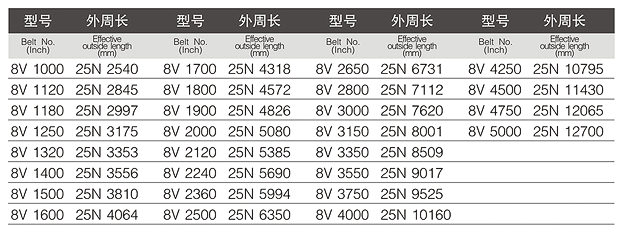

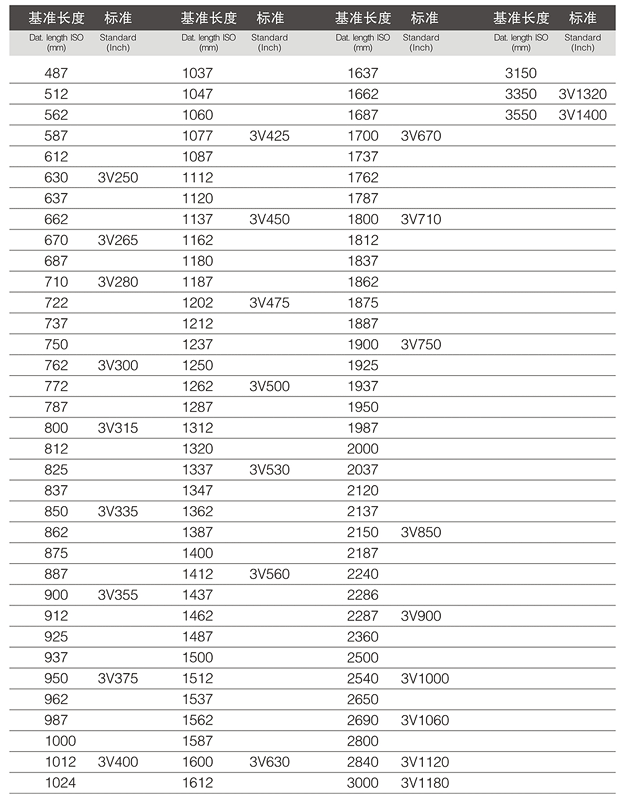

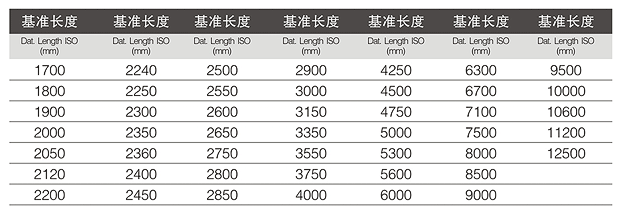

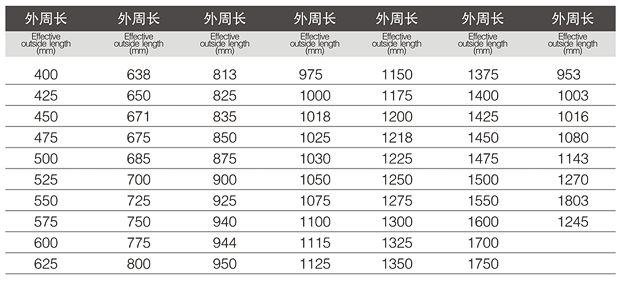

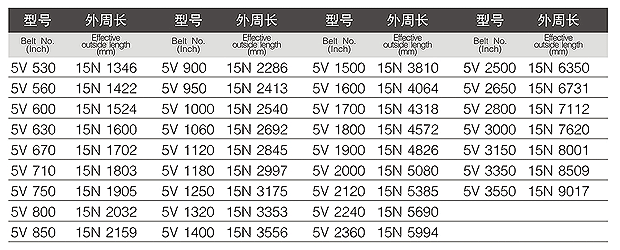

Size of Section
Type
Top width
Beit Thickness
Angle
Production scope
M
10
6
40
15-120
A
13
8
40
18-360
B
17
11
40
22-550
C
22
14
40
33-600
D
32
19
40
80-600
E
38
23
40
110-600
